HF3020TB

Top Bend Neon Flex 30x20mm | 20w p/mtr Maximum 5m

  • 30mm (W) x 20mm (H) top bend profile

  • High-output 20W/m power with up to 1280lm/m brightness

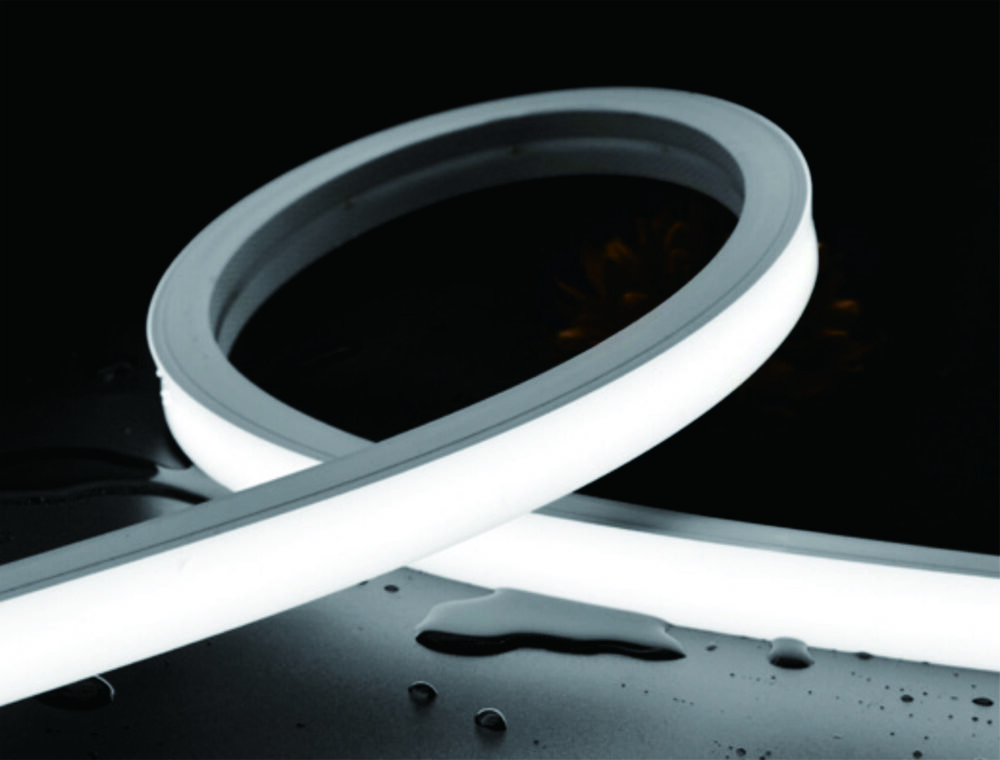

  • Top bend flexibility ideal for vertical curves and façades

  • Available in static white (3000K–6000K), RGB, RGBW, and tunable white

  • CRI >90 with R9 >50 for enhanced colour rendering (white variants)

  • 24V DC constant voltage with 50mm cut units

  • Max 5m run at single end for stable performance

  • IP67 silicone housing – waterproof, UV and salt resistant

  • 300mm minimum bend diameter

The HF3020TB is Heliflex’s most powerful top bend neon flex, delivering exceptional brightness and performance for bold architectural and commercial lighting applications. Designed for projects requiring high luminous output in a durable and flexible package, this profile features 20W/m power consumption and outputs up to 1280 lumens per metre.

With a wide 30mm x 20mm profile, this neon flex provides an intense, uniform glow and supports top bending for installation along vertical planes. Its IP67-rated silicone housing ensures superior weather resistance, UV stability, and protection against harsh environmental conditions. Suitable for façades, large-scale signage, bridges, and building contours.

Datasheet

HF3020TB_Heliflex_30x20mm_24v_top_bend_neon_flex_data_sheet_25.5
