HF1615TB.LRHE10

High Output Neon Flex 16x15mm | 10w p/mtr Long Run – 12m

  • Top Bend / Vertical Bend

  • High-efficiency 90 lm/W LED performance

  • Up to 880 lumens per metre

  • 12m maximum single-end run length

  • CRI >90 and R9 >50 for superior colour rendering

  • IP67-rated silicone housing for outdoor and harsh environments

  • CCT options: 2700K, 3000K, 4000K, 5000K, 6000K

  • Power: 10W/m | Voltage: 24V DC

  • Cuttable every 50mm

  • 200mm minimum bend diameter

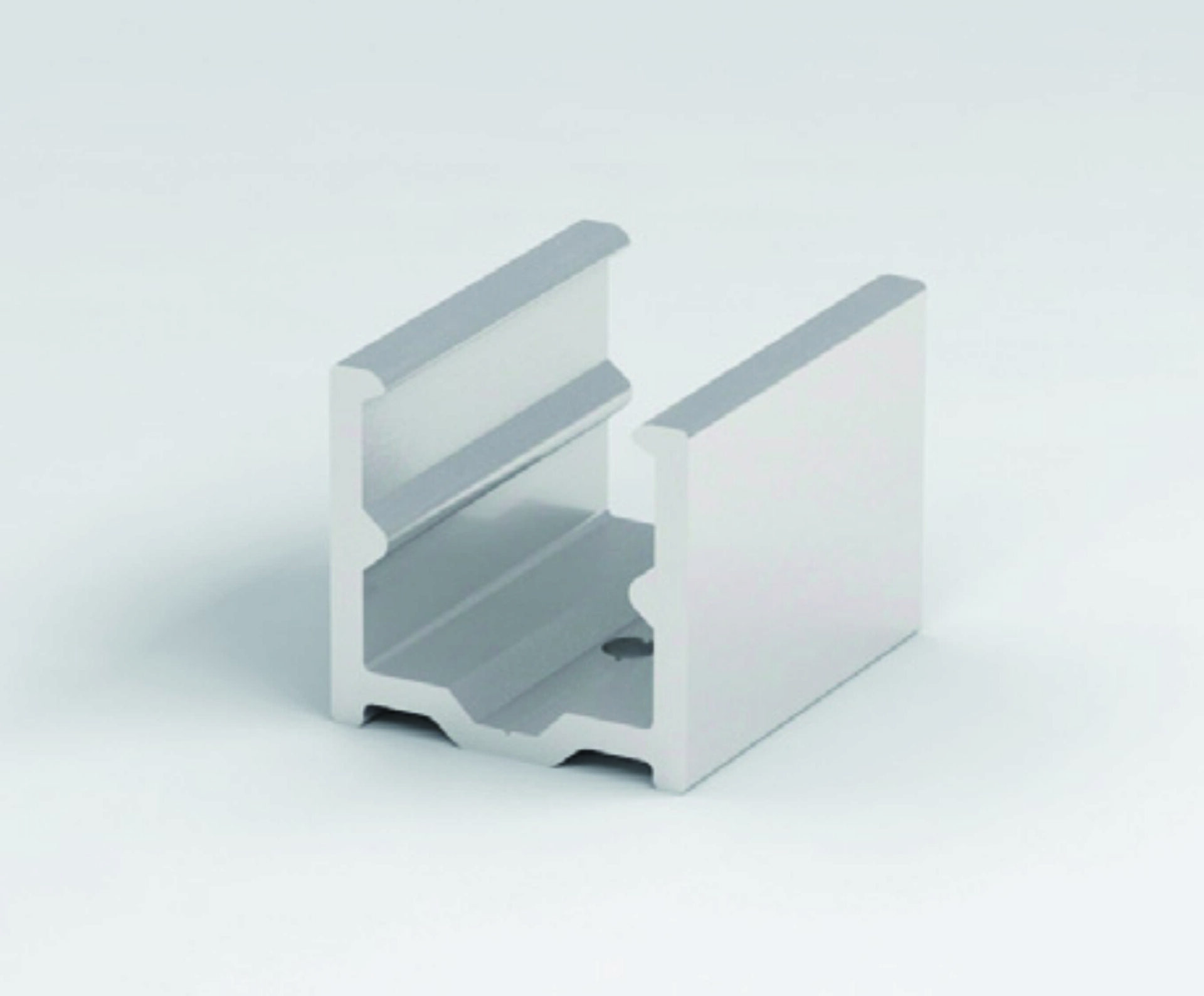

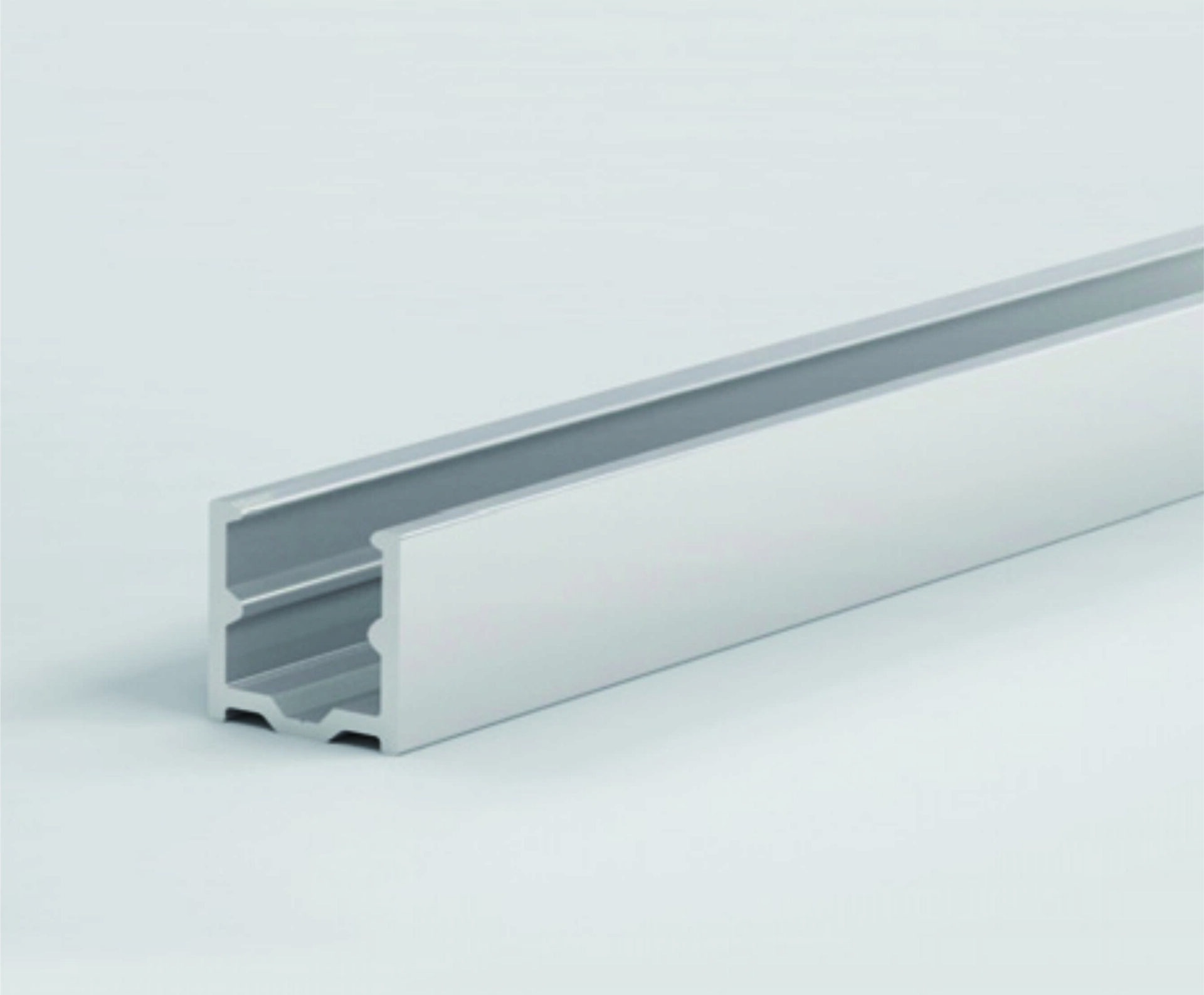

  • Compatible with aluminium clips and profile accessories

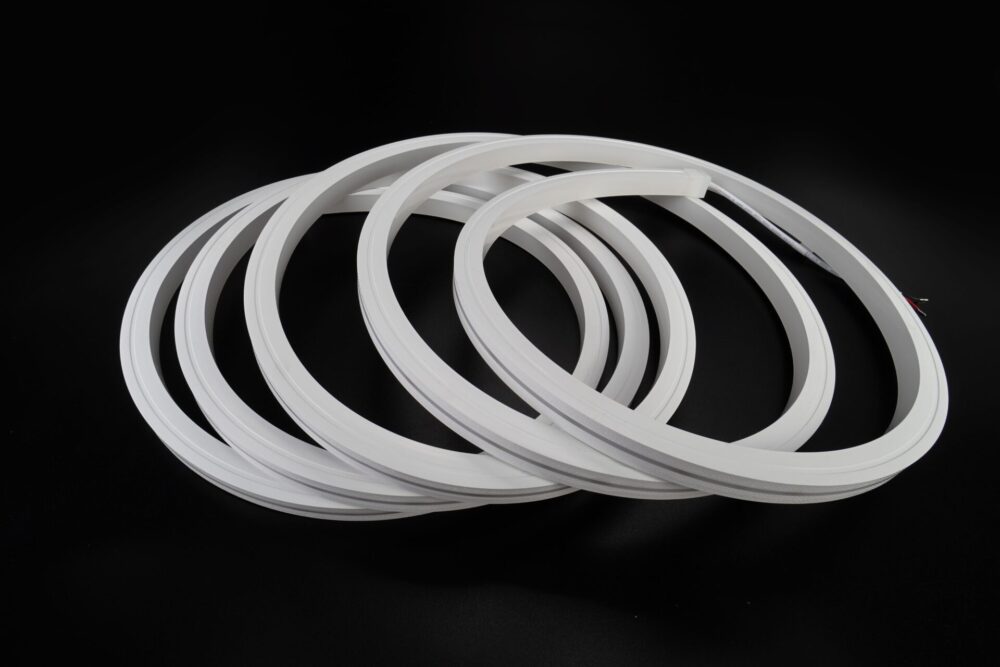

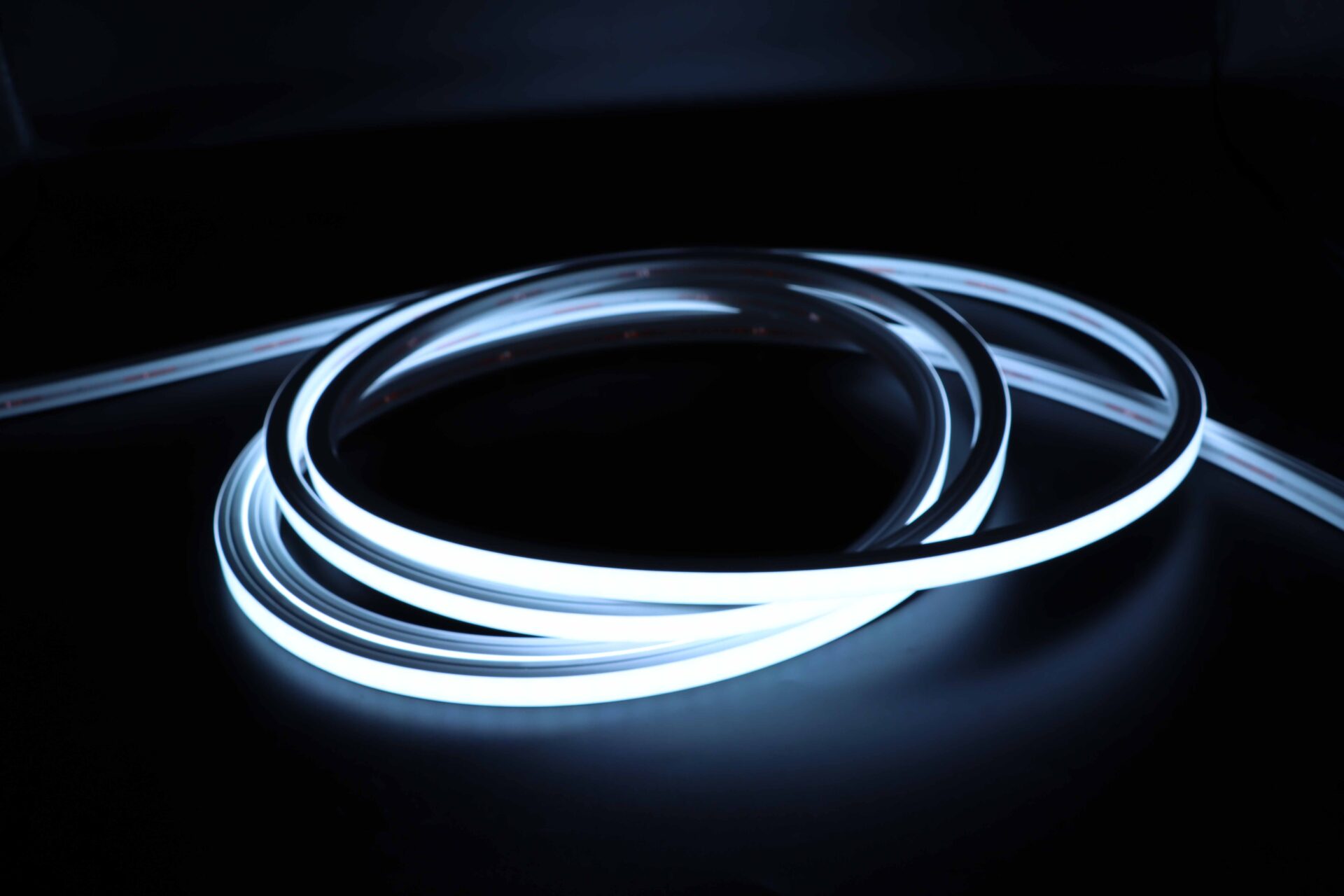

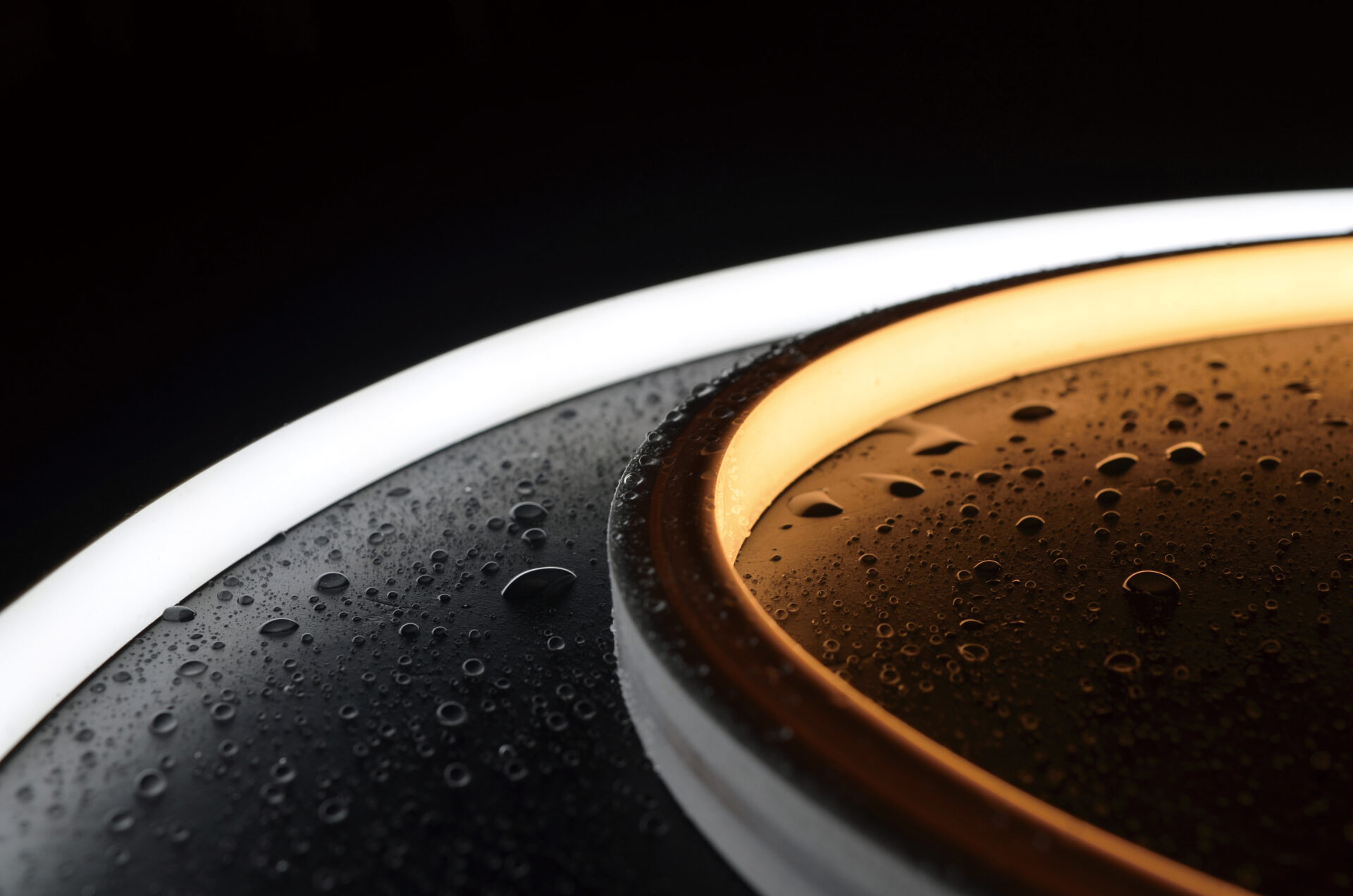

The HF1615TB.LRHE10 is a high-output, high-efficiency top bend neon flex LED strip, designed to deliver exceptional brightness and performance over longer runs. At 10W per metre and up to 90 lumens per watt, this profile achieves up to 880 lumens per metre while maintaining a maximum single-end run length of 12 metres.

Built for architectural-grade performance, this 16mm x 15mm vertical bend profile is housed in IP67-rated silicone extrusion, offering excellent durability, UV resistance, and salt solution protection. It’s a top-tier choice for applications where brightness, colour accuracy, and run length are all critical.

Datasheet

HF1615TB.LRHE10_Heliflex_16x15mm_24v_top_bend_neon_flex_long_run_high_effeciency_12m_10w_data_sheet_25.5 - Copy
