HF1220SB.LRHE10 is a high-efficiency, long-run side-bend neon flex with a compact 12x20mm profile. Engineered for architectural lighting, signage, and façade applications, it offers powerful illumination with a 10W/m power draw and up to 61 lm/W efficiency. Designed for 12-meter single-end runs, it is IP67-rated, flexible, and tough enough for outdoor use.
HF1220SB.LRHE10
High Output Neon Flex 12x20mm | 10w p/mtr Long Run – 12m
-
Side-bend flexible LED design
-
Long single-end run up to 12 meters
-
Slim silicone extrusion: 12mm (W) x 20mm (H)
-
High efficiency – up to 61 lm/W
-
CRI >90 with R9 >50 for excellent color rendering
-
Wide color temperature range: 2700K–6000K
-
Power consumption: 10W/m at 24V DC
-
50mm cuttable units for custom length
-
150mm minimum bending diameter
-
IP67 waterproof and UV-resistant for outdoor use
-
Salt-solution resistant for coastal or marine environments
-

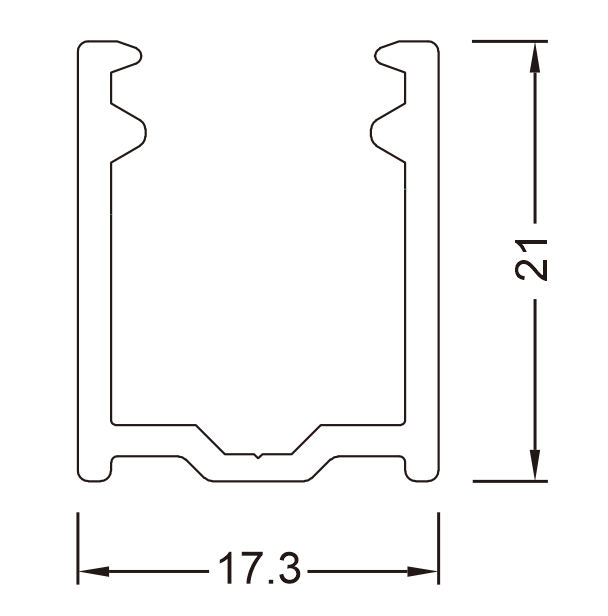

Optional mounting accessories – clips and profiles
